Kingston KC3000 NV2 1T 2T Solid State Drive 500G M.2 NVMe Laptop Hard Drive



Specification:

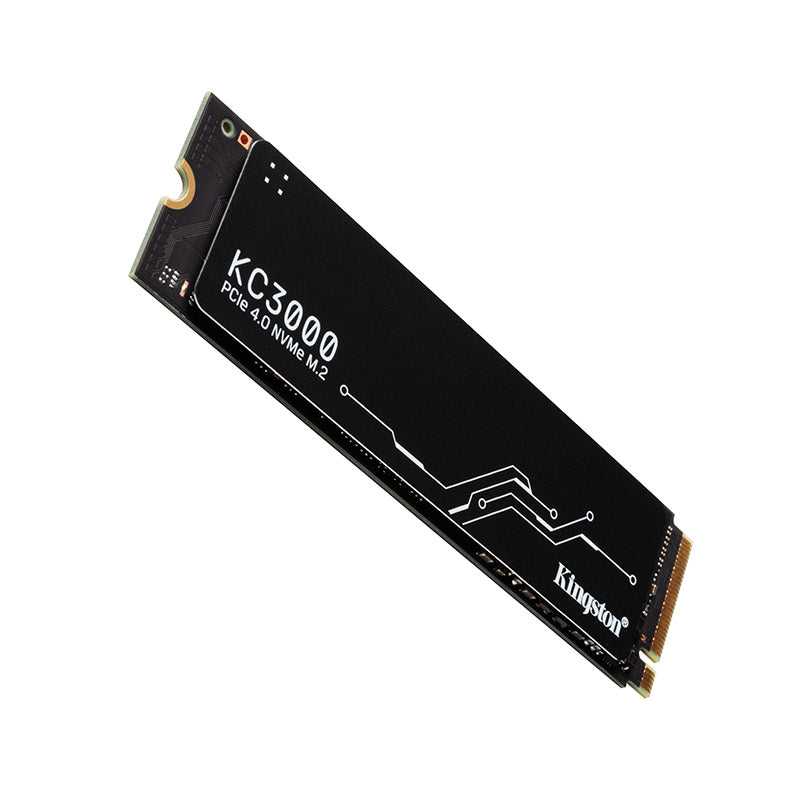

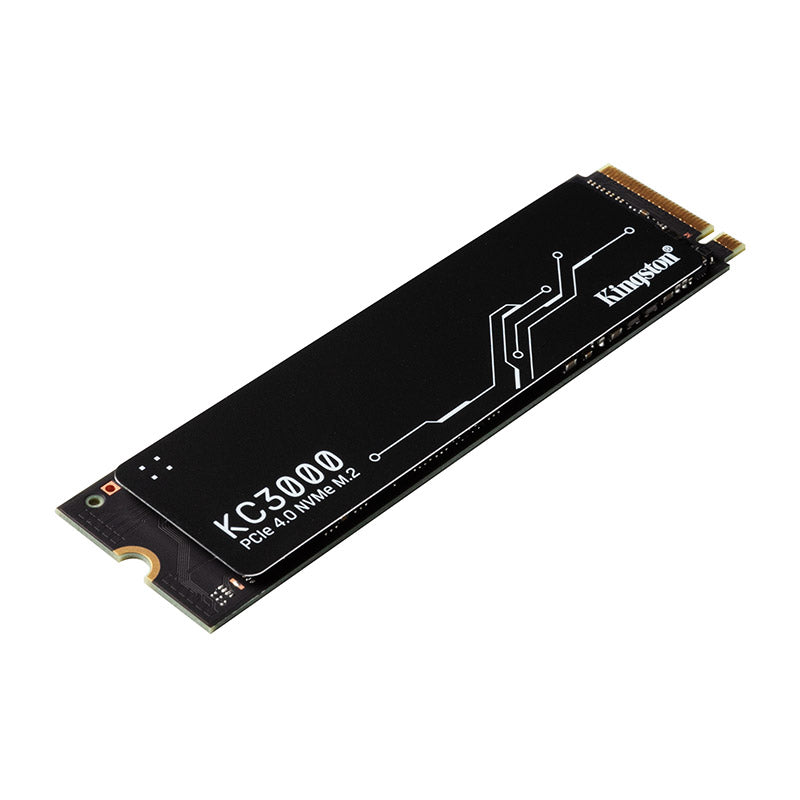

KC3000 PCIe 4.0 NVMe M.2 SSD

High-Performance Storage for Desktop and Laptop PCs

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the latest Gen 4x4 NVMe controller and 3D
TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better
performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to
7,000MB/s read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power
users who require the fastest speeds on the market.
The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate
responsiveness and superior loading times.
Full capacities available from 512GB–4096GB to meet your data storage requirements.


PCIe 4.0 NVMe high-performance
Upgrade with full capacities up to 4096GB2
Compact M.2 2280 form factor
Low profile graphene aluminum heat spreader

Form Factor

 M.2 2280
Interface

 PCIe 4.0 x4 NVMe
Capacities

 512GB, 1024GB, 2048GB, 4096GB
Controller

Phison E18
NAND

3D TLC
DRAM Cache

 Yes
Sequential Read/Write

512GB – 7,000/3,900MB/s
1024GB – 7,000/6,000MB/s
2048GB – 7,000/7,000MB/s
4096GB – 7,000/7,000MB/s
Key Features
PCIe 4.0 NVMe Technology
Master intensive applications with speeds up to
7,000/7,000MB/s read/write.
Store more
Upgrade and manage storage with full capacities up to
4096GB .

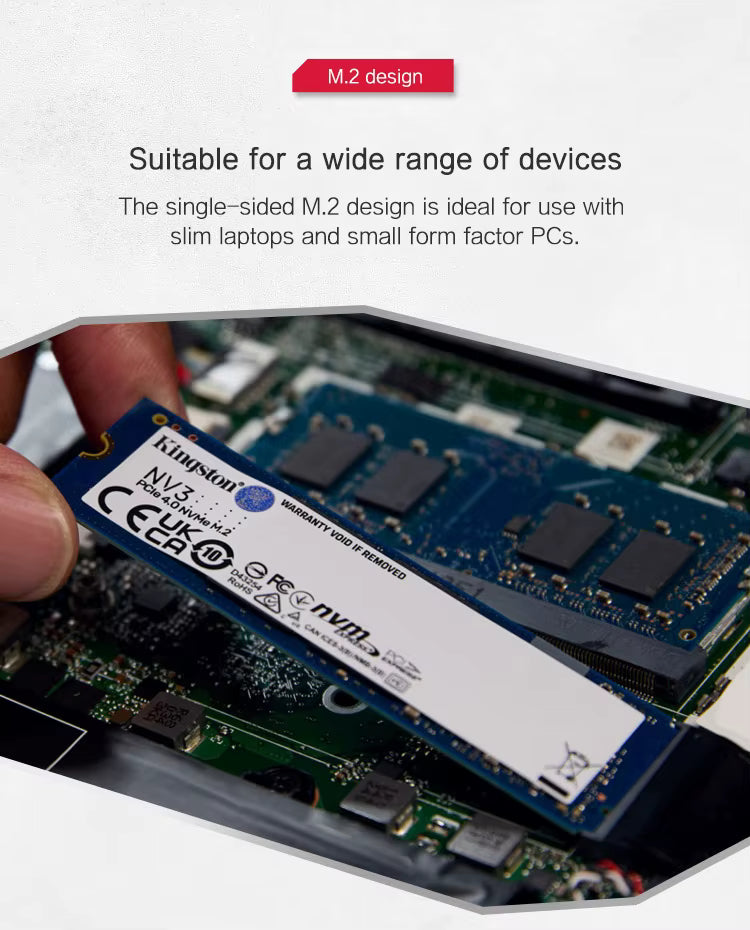

Greater flexibility
Compact M.2 design fits easily into small form factor (SFF)
systems, desktops and laptop PCs.

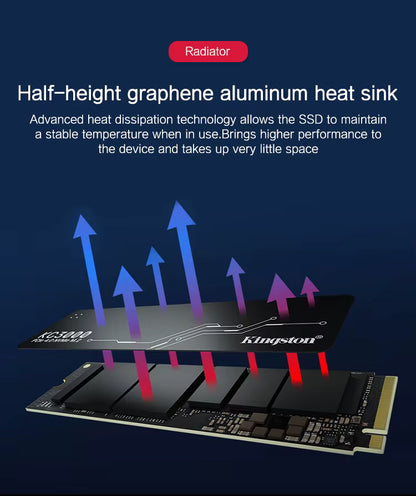

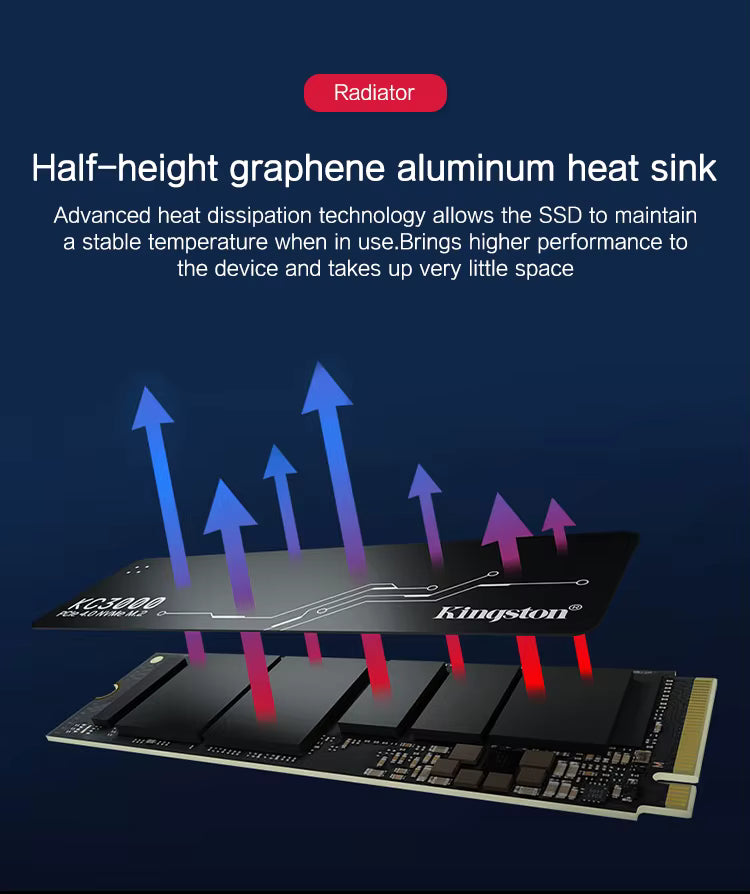

Low profile graphene aluminum heat spreader
Exceptional thermal dissipation keeps your drive cool with
maximum performance.

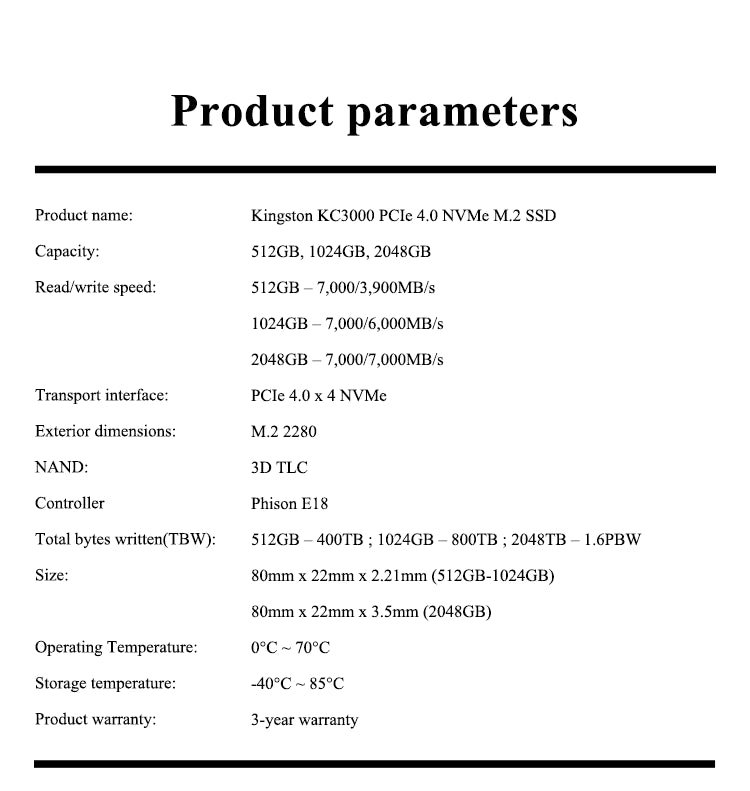

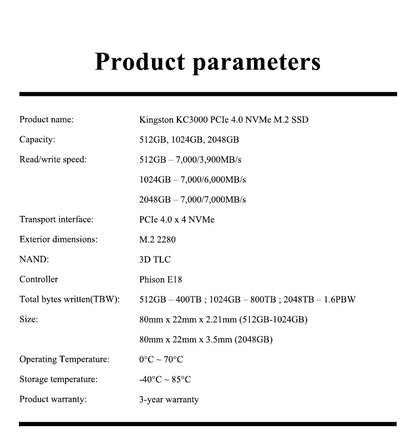

Specifications

Random 4K Read/Write

512GB – up to 450,000/900,000 IOPS
1024GB – up to 900,000/1,000,000 IOPS
2048GB – up to 1,000,000/1,000,000 IOPS
4096GB – up to 1,000,000/1,000,000 IOPS
Total Bytes Written (TBW)

512GB – 400TBW
1024GB – 800TBW
2048GB – 1.6PBW
4096GB – 3.2PBW
Power Consumption

512GB – 50mW Idle / 0.34W Avg / 2.7W (MAX) Read / 4.1W (MAX) Write
1024GB – 50mW Idle / 0.33W Avg / 2.8W (MAX) Read / 6.3W (MAX) Write
2048GB – 50mW Idle / 0.36W Avg / 2.8W (MAX) Read / 9.9W (MAX) Write
4096GB – 50mW Idle / 0.36W Avg / 2.7W (MAX) Read / 10.2W (MAX) Write
Storage Temperature

 -40°C~85°C
Operating Temperature

 0°C~70°C
Dimensions

 80mm x 22mm x 2.21mm (512GB-1024GB)
80mm x 22mm x 3.5mm (2048GB-4096GB)
Weight

512GB-1024GB – 7g
2048GB-4096GB – 9.7g
Vibration Operating

2.17G Peak (7-800Hz)
Vibration Non-operating

20G Peak (20-1000Hz)
MTBF

2,000,000 hours
Warranty/support

Limited 5-year warranty with free technical support

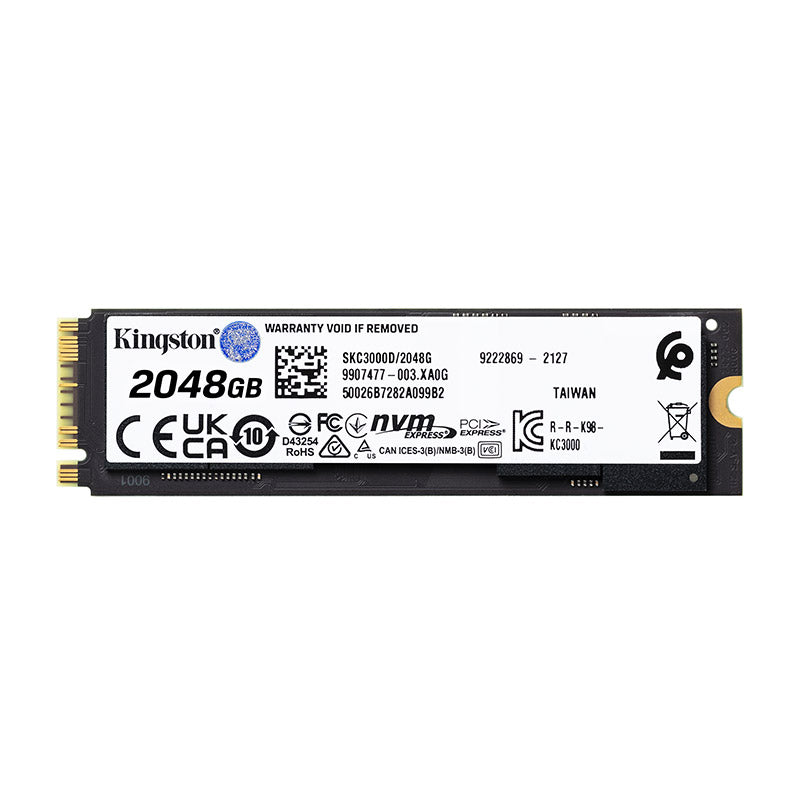

Part Numbers
KC3000
SKC3000S/512G

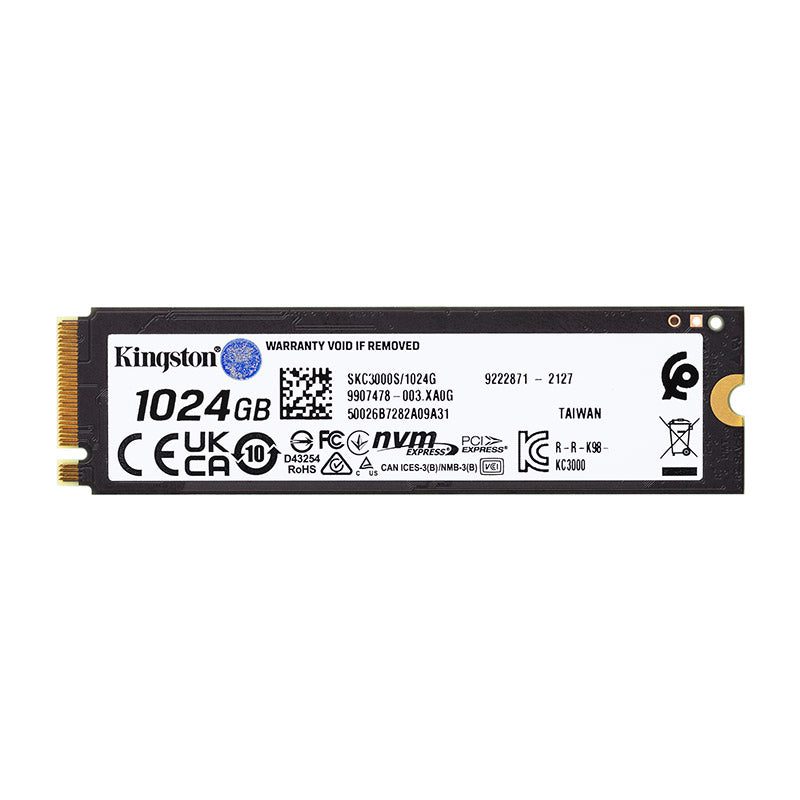

SKC3000S/1024G

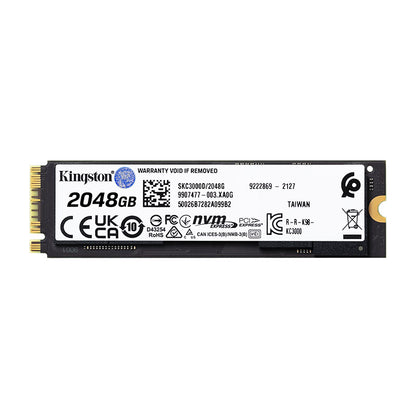

SKC3000D/2048G
SKC3000D/4096G

This SSD is designed for use in desktop and notebook computer workloads and is not intended for Server environments.
1. Based on “out-of-box performance” using a PCIe 4.0 motherboard. Speed may vary due to host hardware, software, and usage.
2. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual
available capacity for data storage is less than what is listed on the products. For more information, go to Kingston's Flash Memory Guide.
3. Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).
4. Limited warranty based on 5 years or “Percentage Used” which can be found using the Kingston SSD Manager (kingston.com/ssdmanager). For NVMe SSDs, a
new unused product will show a Percentage Used value of 0, whereas a product that reaches its warranty limit will show a Percentage Used value of greater than
or equal to one hundred (100). See kingston.com/wa for details.
